PCB Legend Printer

We Will Foster A Craftsmanship Spirit Of Striving For The Best

Product Introduction

Professional PCB Printer Manufacturer

As a critical element within the realm of printed electronics technology applied to digital industrial inkjet equipment, Transon Technology’s independently developed PCB printer incorporates advanced graphic transfer technology. The innovative printer operates on the principle of additive manufacturing, a process whereby it seamlessly converts CAM design data into printable digital images. These images are then directly transferred onto PCB panel workpieces. Leveraging inkjet printing technology, this printer not only ensures high precision and short processing times but also achieves full automation. Furthermore, by eliminating the need for screen printing, it effectively navigates through the technical barriers associated with intelligent high-end equipment for PCB printing. The strategic approach not only enhances production efficiency and manufacturing accuracy but also facilitates labor savings, pollution reduction, and the realization of green and environmentally friendly intelligent production practices.

Technical Advantages

Professional PCB Printer Manufacturer

An automated offline RIP software system processes GERBER data automatically, converting it into printable bitmap images.
The printer software features a user-friendly interface, making it easy to operate and suitable for users of all skill levels.
It supports the printing of various types of 2D barcodes, serial numbers, and labels synchronously.
The software offers three modes of operation: work, standby, and shutdown. When the printer is not in use for an extended period, it automatically switches to standby mode. During prolonged periods of inactivity, the shutdown mode is activated to further reduce power consumption and protect the printhead and electrical components.

The patented self-locking elastic fixture device and automatic vacuum suction plate correct PCB panel warpage and deformation, eliminating the risk of printhead collision.
Dual CCD cameras automatically capture with 3 or 4 target points.
Robust anti-interference image recognition algorithms ensure high target identification rates.
Adaptive graphic scaling and partition compensation contribute to high printing accuracy.
Variable ink droplet printing control ensures excellent print quality and enabling the printing of fine lines and small characters. The white ink blocks are smooth and full, with no ink scattering or satellite dots.
Dynamic UV LED energy control for precise ink curing.
Bi-directional scanning and dual workbench coordination to maximize productivity.
Unique nozzle clogging compensation technology extends the lifespan of printheads.

Incorporates an independent ink circulation control system to reduce ink contamination, and ensure print quality and prolonging the lifespan of printheads.
Features a non-contact automatic cleaning device for printheads to prevent nozzle clogging and misalignment.
Implements an automatic ink recycling system to minimize ink wastage through efficient recycling.
Utilizes a precise negative pressure control system to ensure stable ink supply to printheads, resulting in well-formed ink droplets.

Utilizes high-quality granite base platform.
Employs high-precision linear guide rails for guidance.
Features magnetic levitation linear motor drive for smooth operation.
Incorporates precision grating rulers and high-end motion control cards for closed-loop motion control.
Implements hardware and software redundancy control, along with real-time fault monitoring and alarms.
Ensures safe, stable, and precise operation of equipment with long lifespan.

Supports PCB panel sizes of 730mm x 630mm (28” x 24”) to cater to the vast majority of board manufacturing specifications.
Offers customizable options for configuration, which allows for the selection of different models and quantities of printheads, as well as advanced features such as bi-directional printing and CCD flying capture.
Provides customizable services, tailoring research, development, and production according to customer requirements. For example, we can customize and produce large-format printing equipment with dimensions exceeding 1300mm x 750mm.
Reserves interfaces for loading and unloading platforms to facilitate integration with automated line equipment from different manufacturers.
Offers systematic deployment solutions, effectively integrating various resources. It provides timely reporting of equipment operating status, various safety alarms, and fault information. Furthermore, it generates real-time data reports to facilitate comprehensive realization of safe and efficient production.

Equipment Configuration Table

Professional PCB Printer Manufacturer

Model	Equipment Configuration	Description
TS5	4-head Standard Versio	Printheads installed in a single row, single-direction printing
TS5	5-head Optional Version	Printheads installed in a single row, single-direction printing
TD5	4-head Standard Version	Printheads installed in a single row, bi-direction printing
TD5	5-head Optional Version	Printheads installed in a single row, bi-direction printing
TD9	5-head Optional Version	Printheads installed in a single row, bi-direction printing
TD9	9-head Standard Version	Printheads installed in a single row, bi-direction printing
TD9-A	TD9 8-head Optional Version, Single-machine Automation	Printheads installed in a single row, bi-direction printing, with L-shaped rack automatic loading and unloading
TD9-A	TD9 9-head Standard Version, Single-machine Automation	Printheads installed in a single row, bi-direction printing, with L-shaped rack automatic loading and unloading
TD9-L	8-head Optional Version, Dual-machine Automation	Printheads installed in a single row, Dual-machine printing, with L-shaped rack automatic loading and unloading
TD9-L	9-head Standard Version, Dual-machine Automation	Printheads installed in a single row, Dual-machine printing. with L-shaped rack automatic loading and unloading

Specifications

Professional PCB Printer Manufacturer

Model: TS5

Equipped with 4 printheads (optional configuration with 5 printheads), capable of achieving a production capacity of up to 150 panels per hour.
Operates in a single-machine single-panel working mode.
Capable of synchronously printing characters, white ink blocks, variable QR codes, serial numbers, barcodes, and other labels, with simple operation.

Item	Specifications
Number of Heads	4 printheads (optional configuration with 5 printheads)
Head Model	KM1024a KM1024i 6988HH
Maximum Panel	730mm x 630mm(28"x 24")
Thickness	0.1mm-8mm
Ink	UV-sensitive ink, TAIYO AGFA
Curing Method	UV LED
CCD Capture Method	Dual CCD, automatic capturing with 3 or 4 points
Maximum Resolution	1440x1440
Minimum Character Size	0.4mm (6pl) 0.5mm (13pl)
Minimum Line Width	60 μm(6pl) 75 μm(13pl)
Printing Accuracy	±35μm
Repeatability Accuracy	5 μm
Droplet Size	6pl/13pl
Printing Modes	A-A / A-B
Scanning Method	Unidirectional scanning (optional bidirectional scanning)
Loading Method	Manual loading and unloading
Printing Efficiency Modes	Standard Mode(1440x720)	Fine Mode(1440x1080)	High Precision Mode(1440x1440)
Printing Speed	150 panels/hour	120 panels/hour	90 panels/hour
Power	220V/50Hz 3500W
Air Supply	0.4-0.7MPa
Operating Environment	Temperature: 15-30°C Relative Humidity: 30%-70%
Equipment Dimensions	2700mm x 1450mm x 1750mm (Length x Width x Height)
Equipment Weight	2000kg

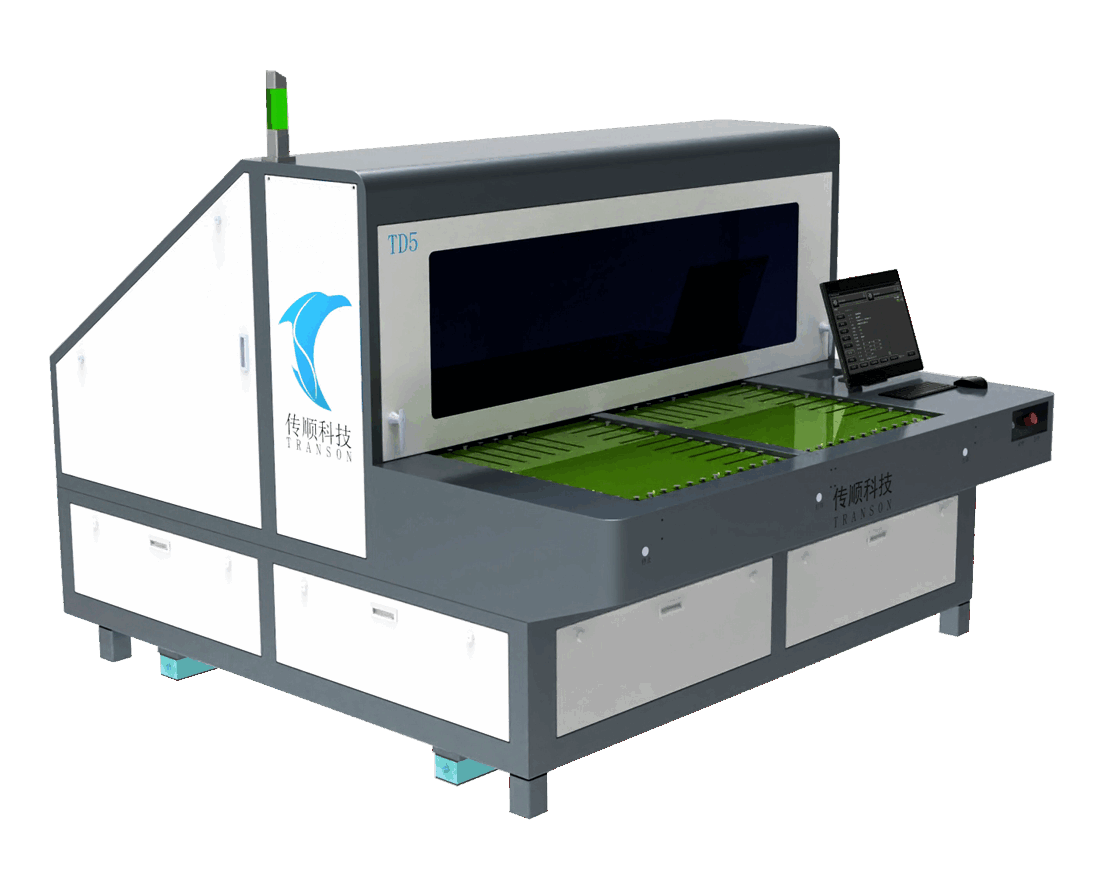

Model: TD5

Equipped with 4 printheads (optional configuration with 5 printheads), capable of achieving a production capacity of up to 300 panels per hour.
Operates in a single-machine dual-panel working mode to maximize the utilization of printheads.
Capable of synchronously printing characters, white ink blocks, variable QR codes, serial numbers, barcodes, and other labels, with simple operation.

Item	Specifications
Number of Heads	4 printheads (optional configuration with 5 printheads)
Head Model	KM1024a KM1024i 6988H
Maximum Panel	730mm x 630mm (28"x 24")
Thickness	0.1mm-8mm
Ink	UV-sensitive ink, TAIYO AGFA
Curing Method	UV LED
CCD Capture Method	Dual CCD, automatic capturing with 3 or 4 points
Maximum Resolution	1440x1440
Minimum Character Size	0.4mm (6pl) 0.5mm (13pl)
Minimum Line Width	60 μm(6pl) 75 μm(13pl)
Printing Accuracy	±35 μm
Repeatability Accuracy	5 μm
Droplet Size	6pl/13pl
Printing Modes	A-A/A-B
Scanning Method	Unidirectional scanning (optional bidirectional scanning)
Loading Method	Manual loading and unloading
Printing Efficiency Modes	Standard Mode(1440x720)	Fine Mode(1440x1080)	High Precision Mode(1440x1440)
打印速度	300 panels/hour	240 panels/hour	180 panels/hour
Power	220V/50Hz 5000W
Air Supply	0.5~0.7MPa
Operating Environment	Temperature: 20-26°C Relative Humidity: 50%-60%
Equipment Dimensions	2700mm x 2200mm x 1750mm (Length x Width x Height)
Equipment Weight	3500kg

Model: TD9

Equipped with 9 printheads (optional configuration with 8/16/18 printheads), capable of achieving one-pass printing, with a production capacity of up to 520 panels per hour.
Operates in a single-machine dual-panel working mode to maximize the utilization of printheads.
Capable of synchronously printing characters, white ink blocks, variable QR codes, serial numbers, barcodes, and other labels, with simple operation.

Item	Specifications
Number of Heads	9 printheads (optional configuration with 8/16/18 printheads)
Head Model	KM1024a KM1024i 6988H
Maximum Panel	730mm x 630mm (28"x 24")
Thickness	0.1mm-8mm
Ink	UV-sensitive ink TAIYO AGFA
Curing Method	UV LED
CCD Capture Method	Dual CCD, automatic alignment with 3 or 4 points(optional configuration with automatic CCD flying capture).
Maximum Resolution	1440x1440
Minimum Character Size	0.4mm (6pl) 0.5mm (13pl)
Minimum Line Width	60 μm(6pl) 75 μm(13pl)
Printing Accuracy	±35 μm
Repeatability Accuracy	5 μm
Droplet Size	6pl/13pl
Printing Modes	A-A/A-B
Scanning Method	單向掃描（可選配雙向掃描）
Loading Method	自動上下料（手動上下料）
Printing Efficiency Modes	Standard Mode(1440x720)	Fine Mode(1440x1080)	High Precision Mode(1440x1440)
Printing Speed	520 panels/hour	380 panels/hour	280 panels/hour
Power	220V/50Hz 5500W
Air Supply	0.5-0.7MPa
Operating Environment	Temperature: 20-26°C Relative Humidity: 50%-60%
Equipment Dimensions	2700mmx2000mmx1750mm (Length x Width x Height)
Equipment Weight	3500kg

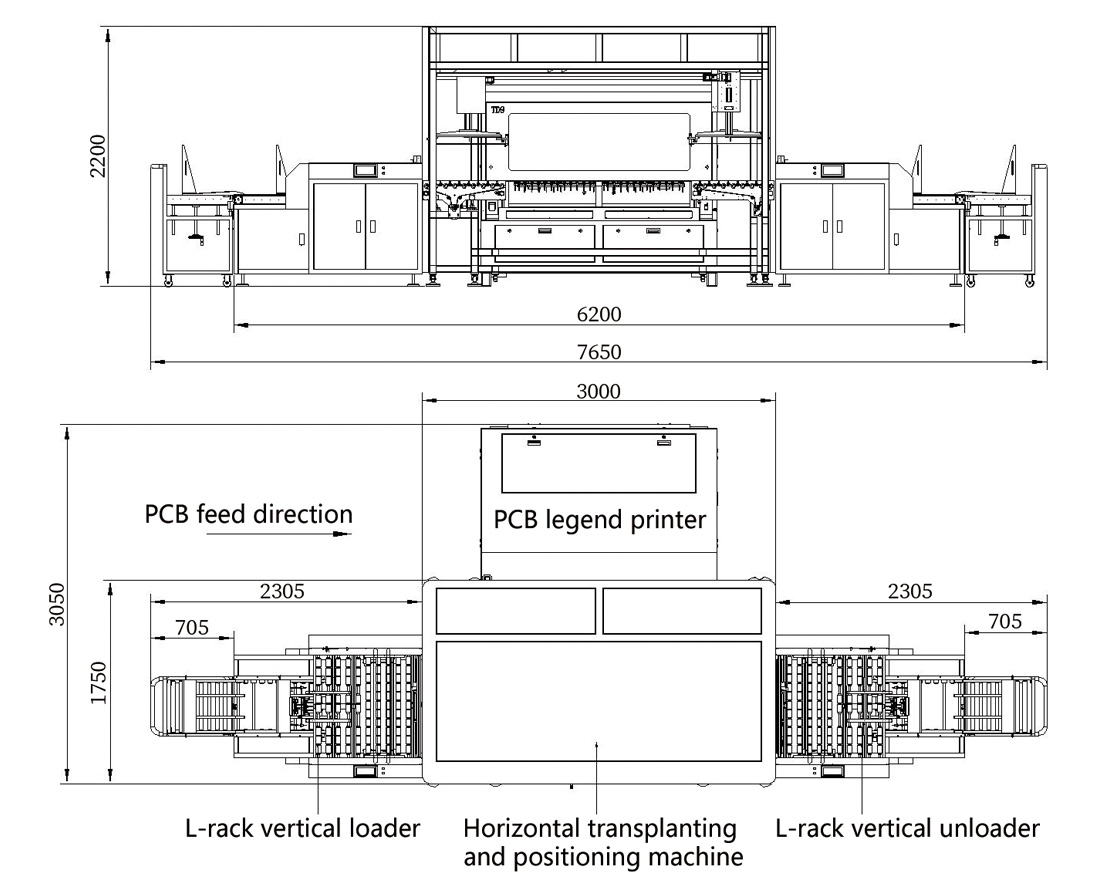

Model: TD9-A Single-machine Automation

Dimensions: 7650mm×3050mm×2200mm(Length x Width x Height).
Equipped with a standard L-shaped rack or plug-in type board loading and unloading machine.
Automatically handles NG board materials.
Manual assistance for flipping the board for printing on the other side (supports single-machine mode).
TD9-A achieves a printing speed of 420 panels per hour(constrained by the speed of the automatic loading and unloading mechanism).
Embodies high productivity, precision, and added value to establish an intelligent character printing production line and open a new era of high productivity.

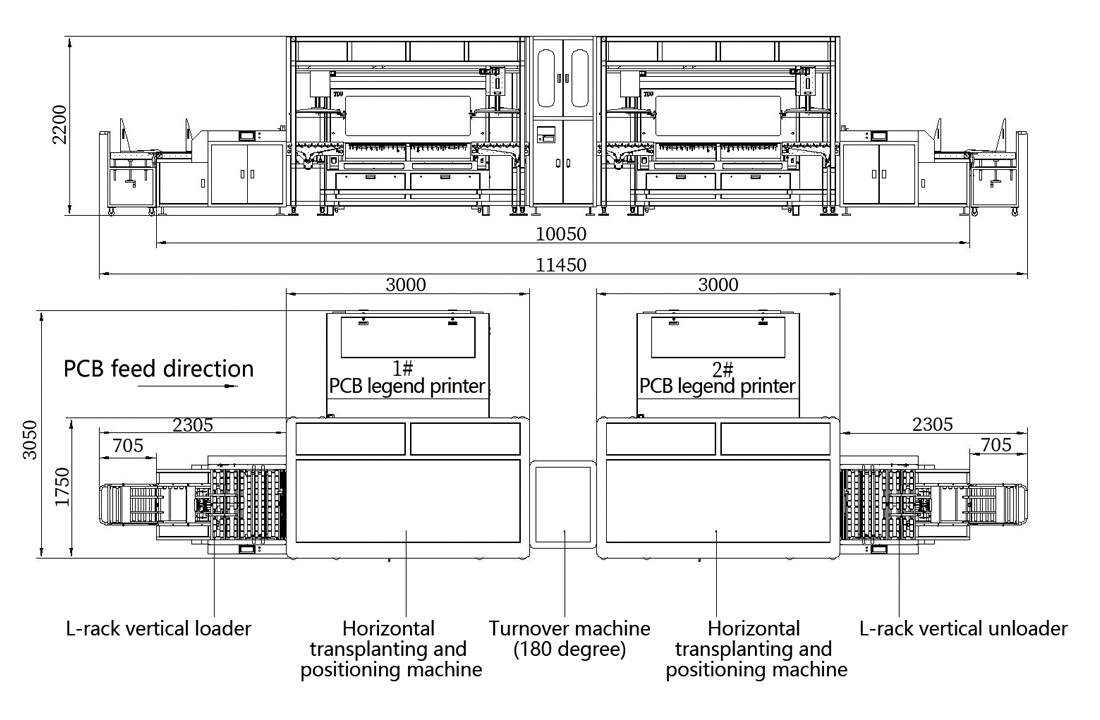

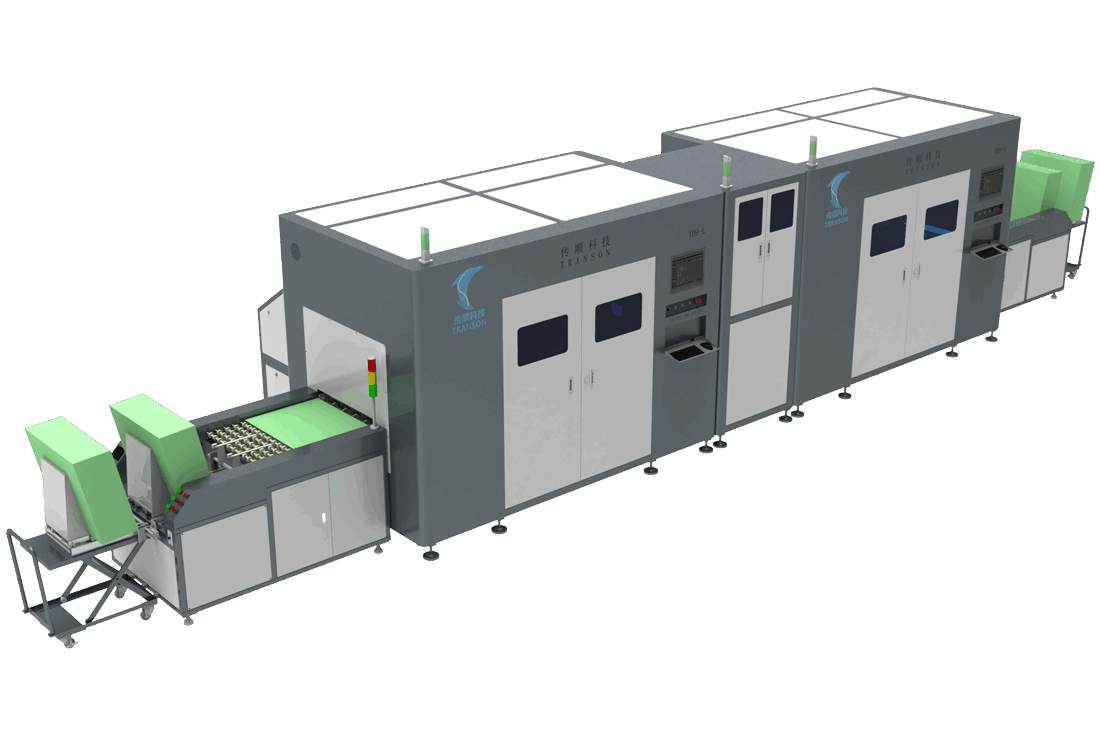

Model: TD9-L Dual-Machine Connection Automation

Equipped with corresponding single-machine workstations based on the actual factory layout, interfacing with upstream and downstream automatic lines.
Automatically handles NG board materials.
Automatically flips the board for printing on the other side (supports single-machine mode).
Achieves a printing speed of 420 panels per hour.
? Embodies high productivity, precision, and added value to establish an intelligent character printing production line and open a new era of high productivity.
